Biomed Techology is Computed Radiography(CR) wholesale Trader, service and maintenance wide range of products which include refurbished Digitizer machines agfa cr35x, agfa cr30Xm, agfa cr30x cr machine, agfa cr15x, agfa cr12-x machine, refurbished agfa cr10-x machine, Fujifilm prima T, Fujifilm prima T2, Fujifilm capsula X, Fujifilm capsula XL2, Carestream vita cr, Carestream vita flex, and printers Agfa drystar 5301, Agfa drystar 5302, Carestream dryview 5700, Carestream dryview 5950.


Digital Radiography(DR) System Dealers in Bangalore, India

Biomed Technology is a professional company incorporated to promote high quality, cost effective DR machine Sales, Service and Maintenance. Our team has extensive experience of over 10 years in medical imaging service industry and installed all over India and sales to world.
We specialized in sales, service for DR system, CR machines. CR machines are AGFA, Fujifilm, and Carestream. In addition to the innovative service and parts solutions we can assist you from end to end on your imaging project requirements including system purchase, site planning, relocation, installation and applications. Our clients range from big and small hospitals, nursing homes, diagnostic centers and individuals running diagnostic facilities.
AGFA:AGFA CR 10-X, AGFA CR 12-X, AGFA CR 15-X , AGFA CR 25.0, AGFA CR 30-X,AGFA CR 30-Xm, AGFA CR 35-X, AGFA DRYSTAR 5301, AGFA DRYSTAR 5302
Fujifilm:FUJIFILM FCR Prima T, FUJIFILM FCR PRIMA T2, FUJIFILM FCR CAPSULA X, FUJIFILM FCR CAPSULA XL II,
Carestream:CARESTREAM DIRECT VIEW VITA CR, CARESTREAM VITA FLEX, CARESTREAM DRYVIEW 5700, CARESTREAM DRYVIEW 5950



  1. AGFA (Pre-Owned)

AGFA CR 10-X



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 10-X
Digitizer Type         Single cassette feed
DISPLAY                LED Status Indicator
Greyscale resolution   Data acquisition:20bits/pixel
                       Output to processor: 16 bits/pixel
Dimensions and weight
W x D x H:             580 x 700 x 471 mm
Weight:                29 kg
POWER                  Input: 100V - 240V

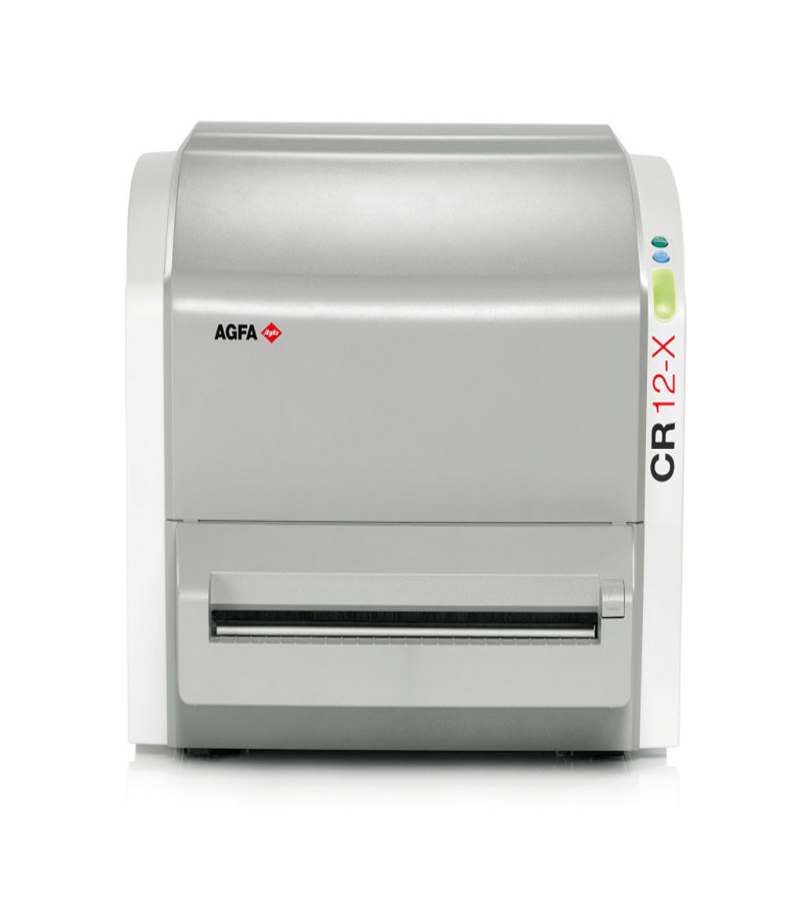

AGFA CR 12-X



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 12X
Digitizer type         Single-cassette feed
Throughput             35 x 43cm = approx. 60 plates/hour
Display                LED Status Indicator
                       Status and error messages
                       on external PC monitor
Greyscale resolution   Data acquisition: 20 bits/pixel
                       Output to processor: 16 bits/pixel
Power                  100V - 240V, <2A/50-60 Hz
Cassette Type          CR MD1.0T General Cassette
                       / CR MD1.0 General Plate
Dimensions
W x D x H (mm)         580 x 700 x 471
WEIGHT(kg)             29

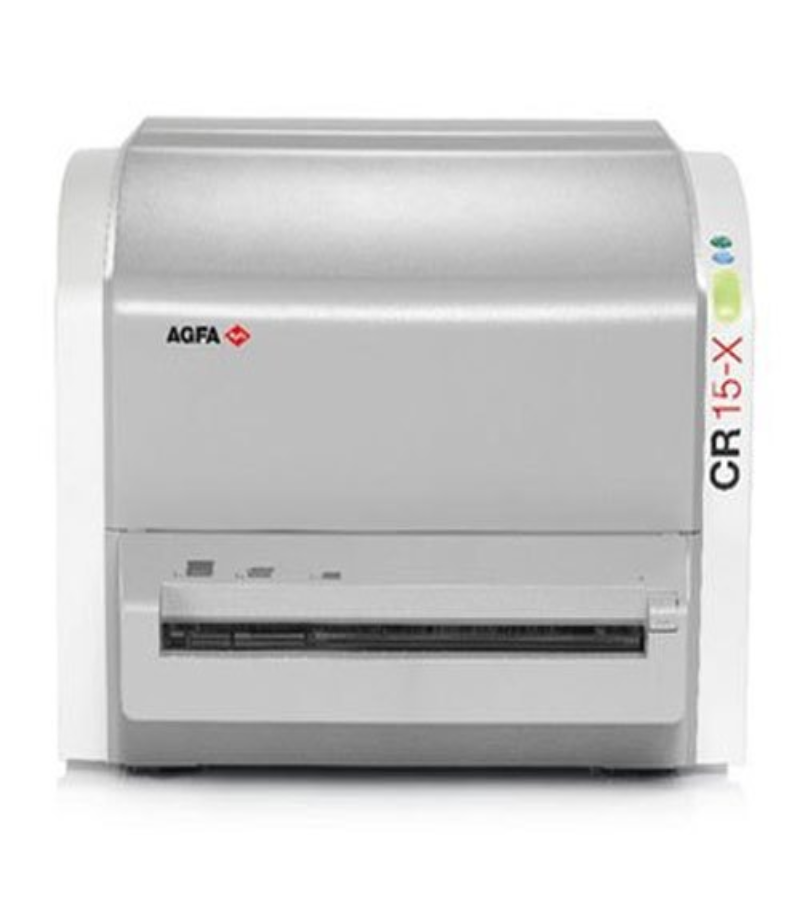

AGFA CR 15-X



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 15-X
Digitizer Type         Single cassette feed
Throughput:            Up to 102 plates/hour
DISPLAY	               LED Status Indicator
Greyscale resolution   Data acquisition:20bits/pixel
                       Output to processor: 16 bits/pixel
Dimensions and weight
W x D x H:             580 x 700 x 471 mm
Weight:                30 kg
POWER                  Input: 100V - 240V
Environmental Effects  Noise level:max 65dB(A)
                       Heat dissipation: standby 30W,
                       max. 140 W

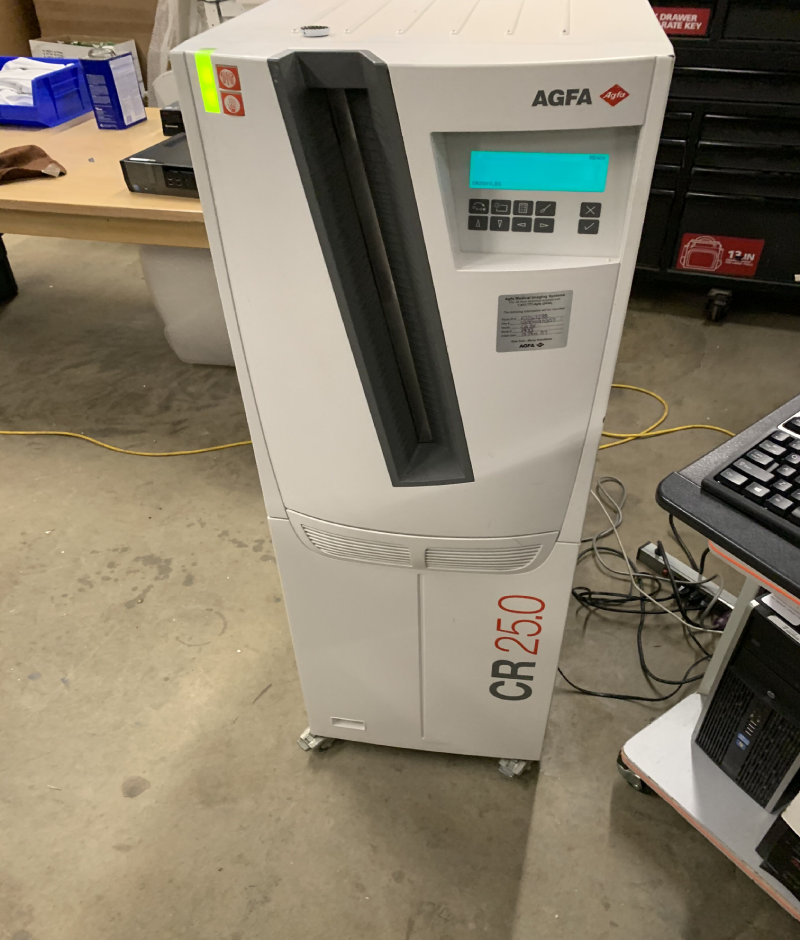

AGFA CR 25.0



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 25.0
READER/DIGITIZER
Yield/hr               Up to 73
USES                   All radiographic exams
Type                   12-bit laser scanner
H x W x D (cm)         141 x 45 x 75
Cassette buffer
capacity               Single-cassette handling
WEIGHT(kg)             210
POWER NEEDED           100-240 VAC, 50/60 Hz
CASSETTE DURATION
(READER/DIGITIZER)     20,000 to 40,000+ cycles
DICOM COMPATIBILITY
(READER/DIGITIZER)     SCU and print class
USES(STAINING POSTS)   All radiographic exams
SYSTEM CHARACTERISTICS Image-plate reader,
                       ID/preview terminal and software,
                       Windows NT processing station
                       and software

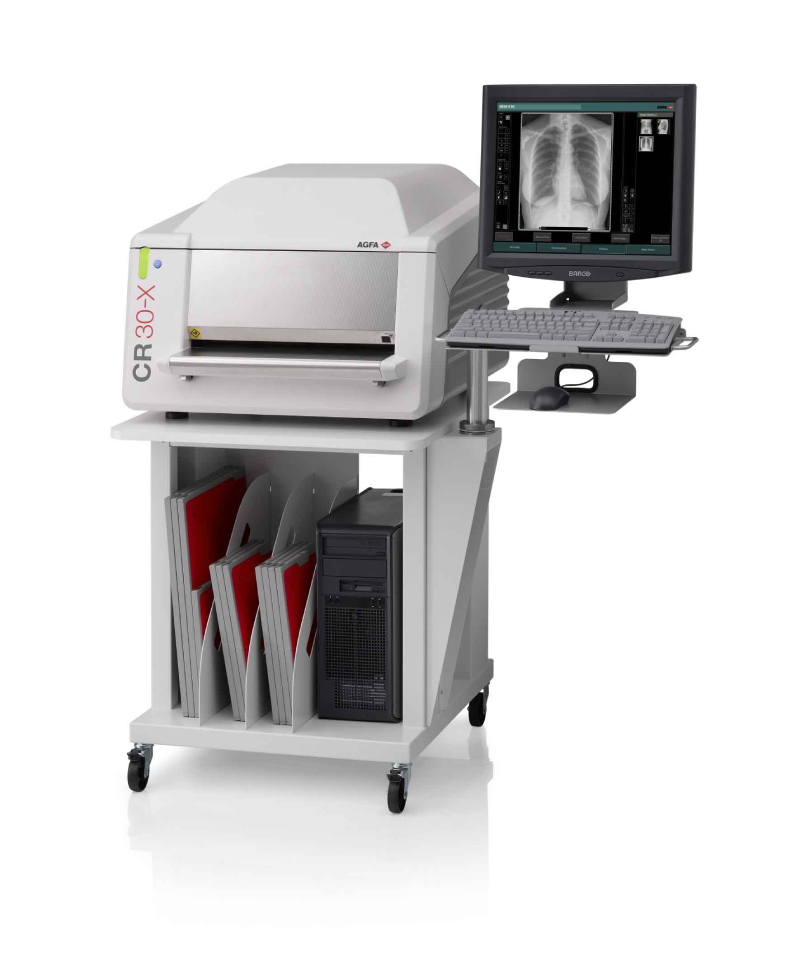

AGFA CR 30-X



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 30-X
READER/DIGITIZER
Type                   ≤20-bit laser scanner
H x W x D (cm)         46.4 x 69.3 x 70.1
Cassette buffer
capacity               Single-cassette handling
WEIGHT(kg)             210
POWER NEEDED           100, 120, 220-240 VAC;
                       50/60 Hz; single-phase
DICOM 3.0 storage
SOP classes            SCU and print class
USES(STAINING POSTS)   All radiographic exams
SYSTEM CHARACTERISTICS Image-plate reader,
                       ID/preview terminal and software,
                       Windows XP processing station
                       and software
14 x 17 in cassette
(PIXEL MATRIX SIZE)    3480 x 4248
35 x 43 cm cassette
24 x 30 cm cassette
(PIXEL MATRIX SIZE)    3480 x 4248 2328 x 2928
18 x 24 cm cassette
(PIXEL MATRIX SIZE)    1728 x 2328

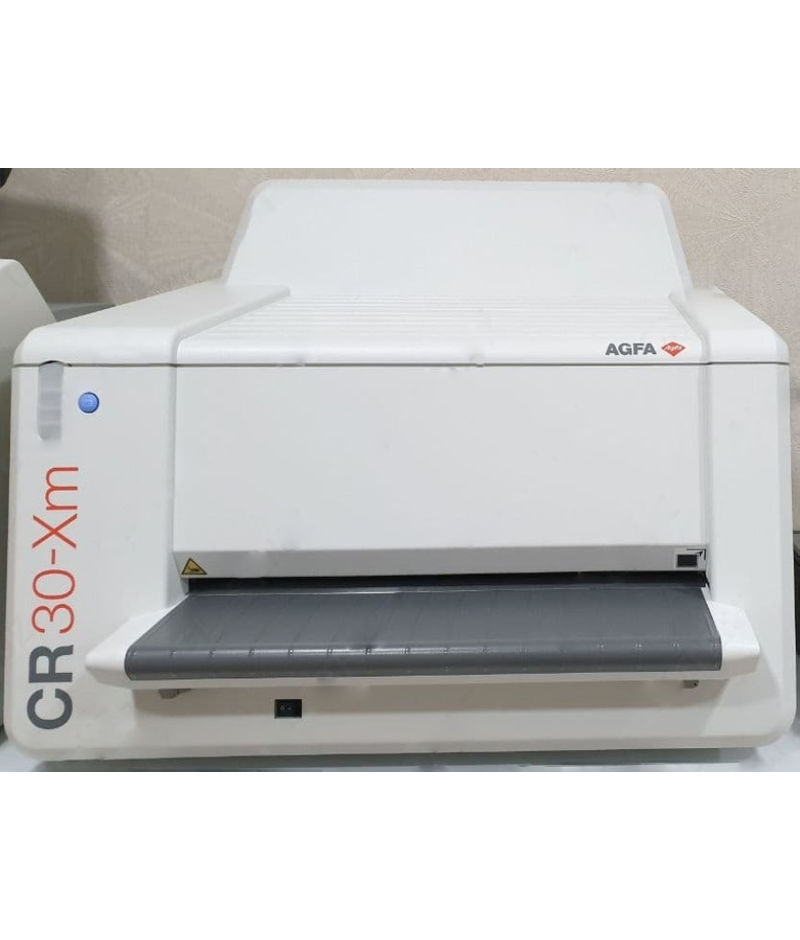

AGFA CR 30-Xm



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 30Xm
Digitizer type         Single-cassette feed
Throughput             35 x 43cm = approx. 60 plates/hour
                       24 x 30cm mammo=approx. 32plates/hour
Display                LED Status Indicator
                       Status and error messages
                       on external PC monitor
Greyscale resolution   Data acquisition: 20 bits/pixel
Power                  220 - 240V, 1.0A/50-60 Hz
Cassette Type          CR MD4.0T General Cassette
                       /CR MM3.0T Mammo Cassette and Plate

Dimensions
W x D x H (mm)         693 x 701 x 546
WEIGHT(kg)             72
POWER NEEDED           220 - 240V, 1.0A/50-60 Hz

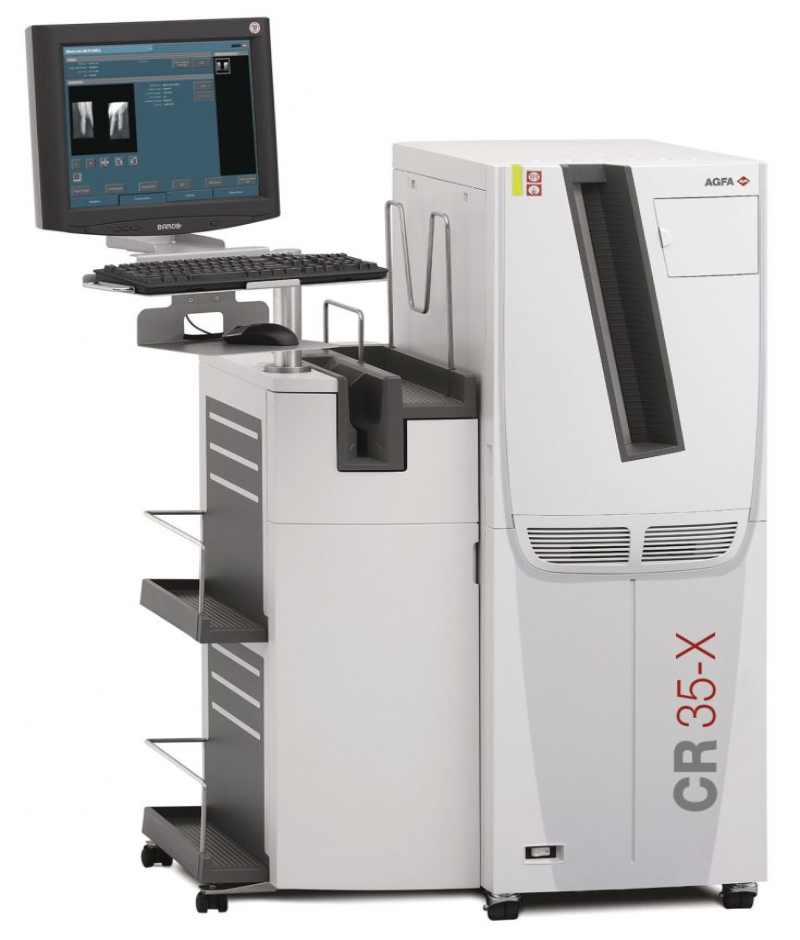

AGFA CR 35-X



SPECIFICATION          PARAMETER

Brand                  Agfa
Model                  CR 35-X
Digitizer Type         Single cassette
Type (CONFIGURATION)   12-bit laser scanne
Weight:                270 kg
POWER NEEDED           100, 120, 230-240 VAC;
                       50/60 Hz; 15/16A; single-phase
Image storage          ~5,000 images
DICOM 3.0 storage SOP
classes (INTEGRATION)   SCU and print class
CASSETTE DURATION
(READER/DIGITIZER)      25,000+ cycles

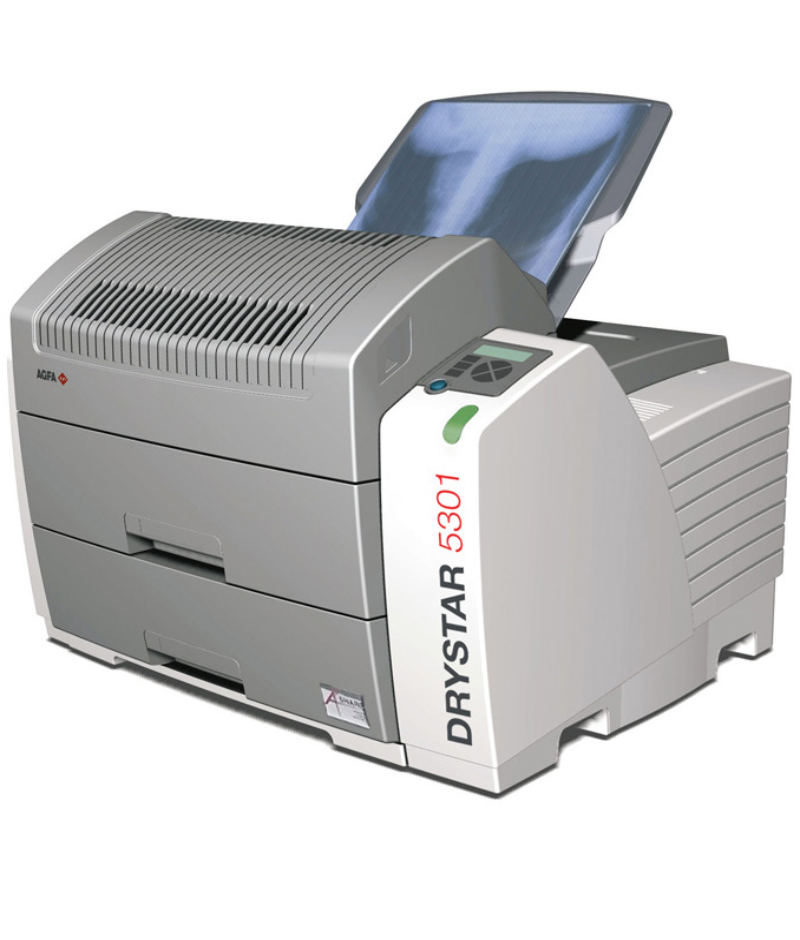

AGFA DRYSTAR 5301



SPECIFICATION          PARAMETER

Brand                 Agfa
Model                 Drystar 5301
Throughput            14x17inch: 75 sheets/hour;
                      Access time(first sheet) 77sec(14x17 inch);
                      8x 10 inch: 130sheets/hour
                      11 x 14 inch: 86 sheets/hour
Printing resolution   Geometrical: 320 dpi;
                      Contrast: 14 bits printing
Types                 DRYSTAR DT2 B: blue base;
                      DRYSTAR DT2 C: clear base;
Dimensions
W x D x H (mm)        72.8 x 71.5 x 53.6 cm (H = 67.6cm
                      with output tray)
WEIGHT(kg)            77
POWER NEEDED          Auto ranging 100 - 240 V: 50/60 Hz.

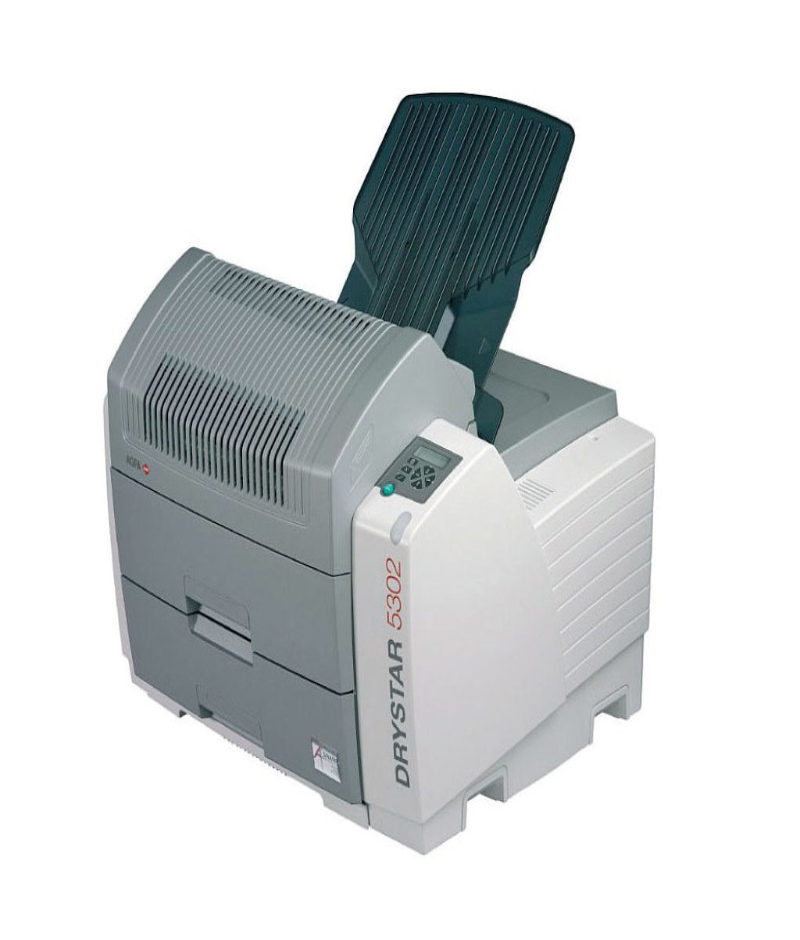

AGFA DRYSTAR 5302



SPECIFICATION          PARAMETER

Brand                 Agfa
Model                 Drystar 5302
Throughput            14x17inch: 75 sheets/hour;
                      Access time(first sheet) 65sec(14x17 inch);
                      8x 10 inch: 130sheets/hour for mammography;  Access time (first sheet) 45sec
                      (8 x 10 inch MAMMO)
Printing resolution   Geometrical: 508 dpi;
                      Contrast: 14 bits printing
Cassette Type         CR MD4.0T General Cassette
                      /CR MM3.0T Mammo Cassette and Plate
Types                 DRYSTAR DT2 B: blue base;
                      DRYSTAR DT2 C: clear base;
                      DRYSTAR DT2 MAMMO.
Dimensions
W x D x H (mm)        72.8 x 71.5 x 53.6 cm (H = 67.6cm
                      with output tray)
WEIGHT(kg)            90
POWER NEEDED          Auto ranging 100 - 240 V: 50/60 Hz.
  1. FUJIFILM (Pre-Owned)

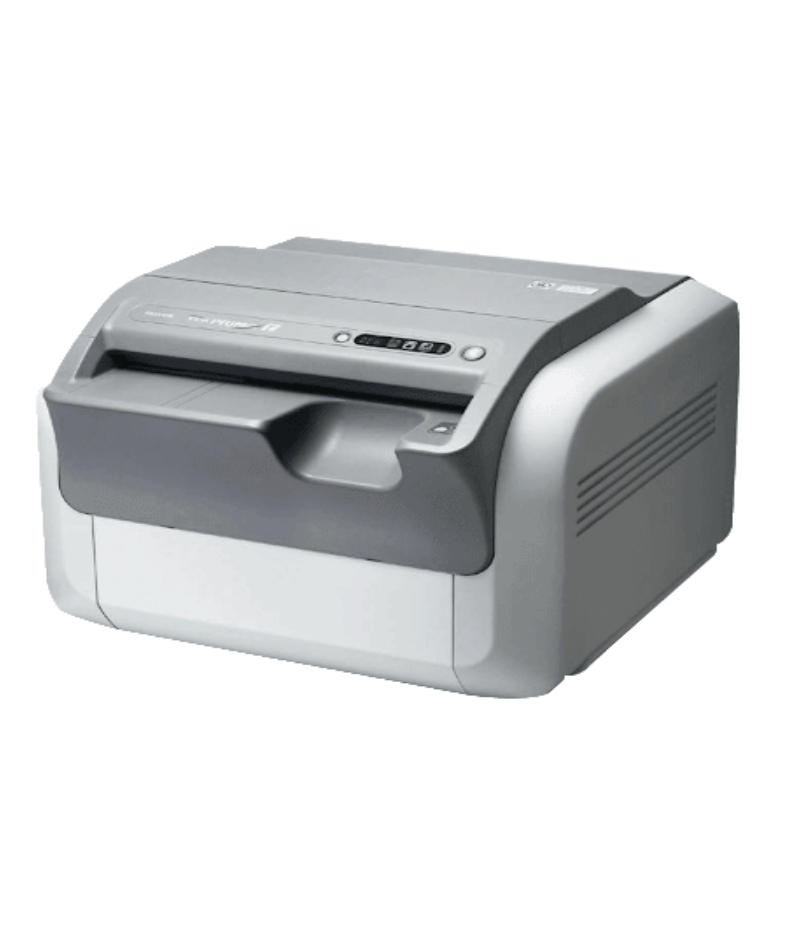

FUJIFILM FCR Prima T



SPECIFICATION            PARAMETER

Brand                    Fujifilm
Model                    Fuji FCR Prima T
Supplies                 Imaging Plate ST-VI:
                         35x43cm,35x35cm,10”x12”,8”x10”,
                         24x30cm,18x24cm,15x30cm(Variation)
                         IP Cassette Type CC:
                         35x43cm,35x35cm,10”x12”,8”x10”,24x30cm, 18x24cm,15x30cm (Variation)
Time Required for IP
Feed/ Load               Min.64 sec.(Min. 54 sec.)*
Processing Capacity      Up to 57 IPs/ hr.(Up to 67IPs/hr.)*
Reading Specification    10 pixels/ mm, 5 pixels/mm**
Time to Start on Display Min. 33 sec
Time to Print on
DRYPIX PRIMA             Approx. 165 sec. (Approx. 155 sec.)**
                         in case of 35x43cm
Number of Stacker        1
Dimensions (WxDxH)       560x540x392mm
Weight                   39kg
Power Supply Conditions  Single phase 50- 60Hz
                         AC120- 240V ±10% 1.9A (max)

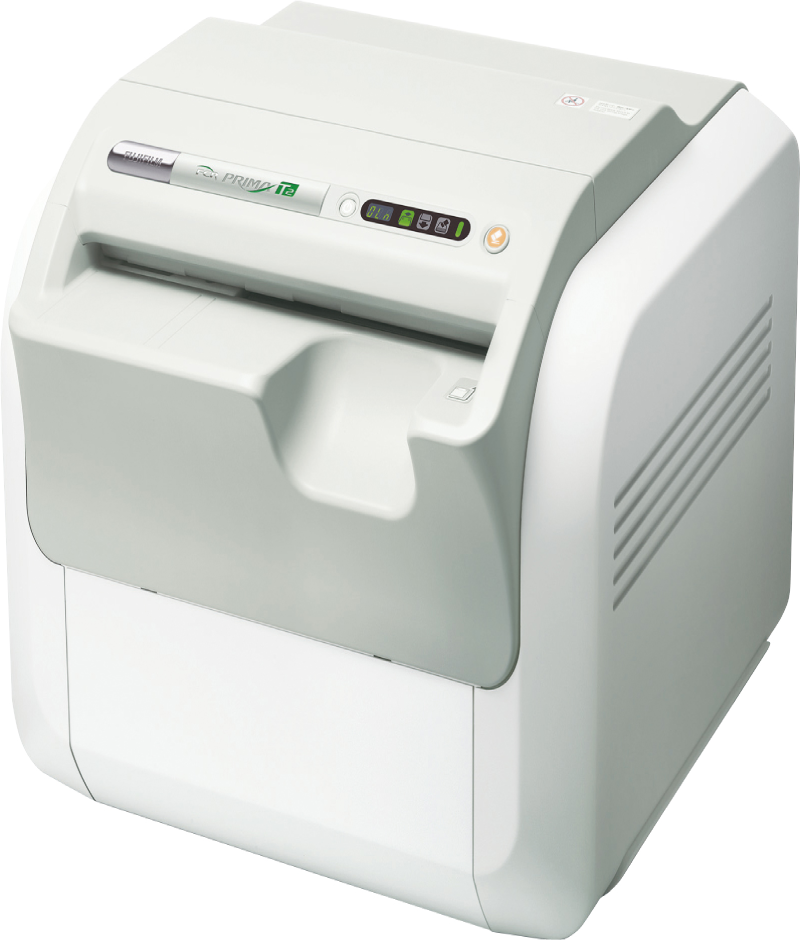

FUJIFILM FCR PRIMA T2



SPECIFICATION            PARAMETER

Brand                    Fujifilm
Model                    Fuji FCR Prima T2
Supplies                 Imaging Plate ST-VI:
                         35x43cm,35x35cm,10”x12”,8”x10”,
                         24x30cm,18x24cm,15x30cm
                         IP Cassette Type CC:
                         35x43cm,35x35cm,10”x12”,8”x10”,24x30cm, 18x24cm,15x30cm
Time Required for IP
Feed/ Load               Min.49 sec.
Processing Capacity      Up to 73 IPs/hr.
Reading Specification    10 pixels/mm, 5 pixels/mm
Time to Start on Display Min. 33 sec
Time to Print on
DRYPIX PRIMA             Approx. 165 sec. (Approx. 155 sec.)**
                         in case of 35x43cm
Number of Stacker        1
Dimensions (WxDxH)       560x540x392mm
Weight                   39kg
Power Supply Conditions  Single phase 50- 60Hz
                         AC120- 240V ±10% 1.9A (max)

FUJIFILM FCR CAPSULA X



SPECIFICATION        PARAMETER

Brand                Fujifilm
Model                Fuji FCR Capsula X
Processing Capacity  43
Matrix size          18 x 24cm (10 pixels)
                     1770 x 2370
                     24 x 30cm (10 pixels)
                     2364 x 2964
                     35 x 35cm (10 pixels)
                     3520 x 3520
                     35 x 43cm (10 pixels)
                     3520 x 4280
                     20 x 25cm (10 pixels)
                     2000 x 2510
                     25 x 30cm (10 pixels)
                     2505 x 3015
                     15 x 30cm (10 pixels)
                     1464 x 2964
Applicable IP Type	 ST-VI
Dimensions (WxDxH)   590x380x810 mm
Weight               99 kg
Power Consumption	0.2 kW

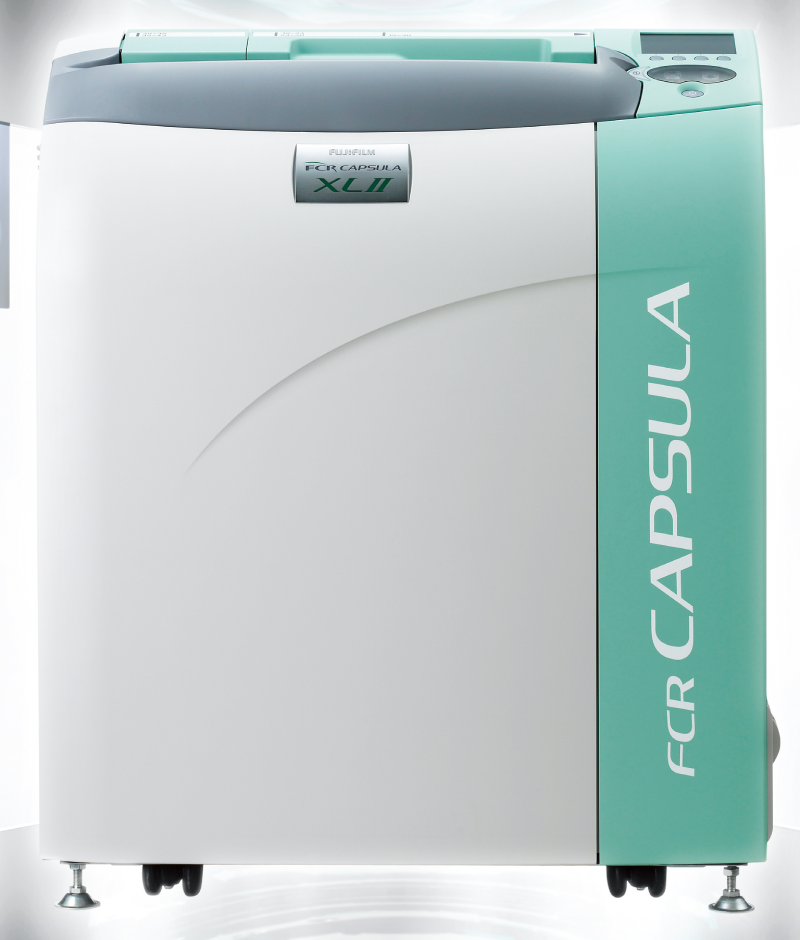

FUJIFILM FCR CAPSULA XL II



SPECIFICATION         PARAMETER

Brand                   Fujifilm
Model                   Fuji FCR Capsula XL II
Other System Components	Optional upgrade kit for
                        50-micron reading with HR-V
                        or HR-VI
                        IP cassette type CC, LC, CH
                        CR Console, CONSOLE ADVANCE*, AWS-c
                        Dry Imager: DRYPIX 2000, 4000, 7000
Supplies                Imaging Plate:
                        ST-VI: 35x43cm, 35x35cm,
                        10"x12", 8"x10", 24x30 cm,
                        18x24cm, 15x30cm
                        HR-V: 24x30 cm, 18x24cm
                        HR-VI: 24x30 cm, 18x24 cm
                        IP Cassette:
                        Type CC: 35x43cm, 35x35cm,
                        10"x12", 8"x10", 24x30cm,
                        18x24cm, 15x30cm
                        Type LC: 35.4x124.5 cm, 35.4x101.7cm,
                        35.4x83.7cm,25.2x58 cm, 24x57cm
                        Type CH: 24x30cm, 18x24cm
Dimensions (WxDxH)      590x380x810 mm
  1. CARESTREAM (Pre-Owned)

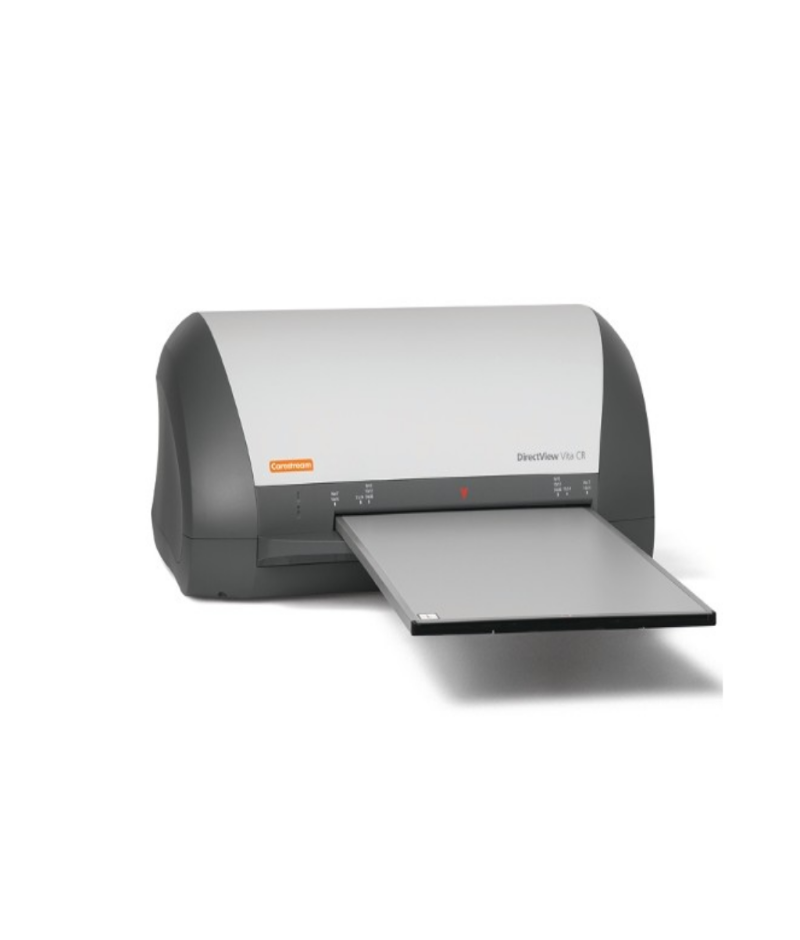

CARESTREAM DIRECT VIEW VITA CR



SPECIFICATION           PARAMETER

Brand                   CareStream
Model                   DirectView Vita CR
Dimensions              34cmx75cmx55cm
Weight                  36kg
Scanning Resolutions    12 Pixels/mm
                        6 Pixels/mm
Plate Sizes             8 x 10 in, 14 x 17 in,
                        14 x 14 in, 14 x 33 in,
                        10 x 12 in, 11 x 14 in,
                        24 x 30 cm, 15 x 30 cm
Features                Enhanced User Interface for Acquisition
                        Web Order Entry
                        DICOM and HL7 Compliant
                        DICOM PrintMulti-format Printing
                        DICOM Viewer
Available Options       Mini-PACS Archiving
                        Clinical Reporting
                        Web Viewer License
                        Long-Length Imaging
                        DICOM Store Service Class Provider(SCP)
                        Advanced Measurement Tools Set
                        OmniLink Software
                        Tablet Viewer
                        Dental Panoramic Package

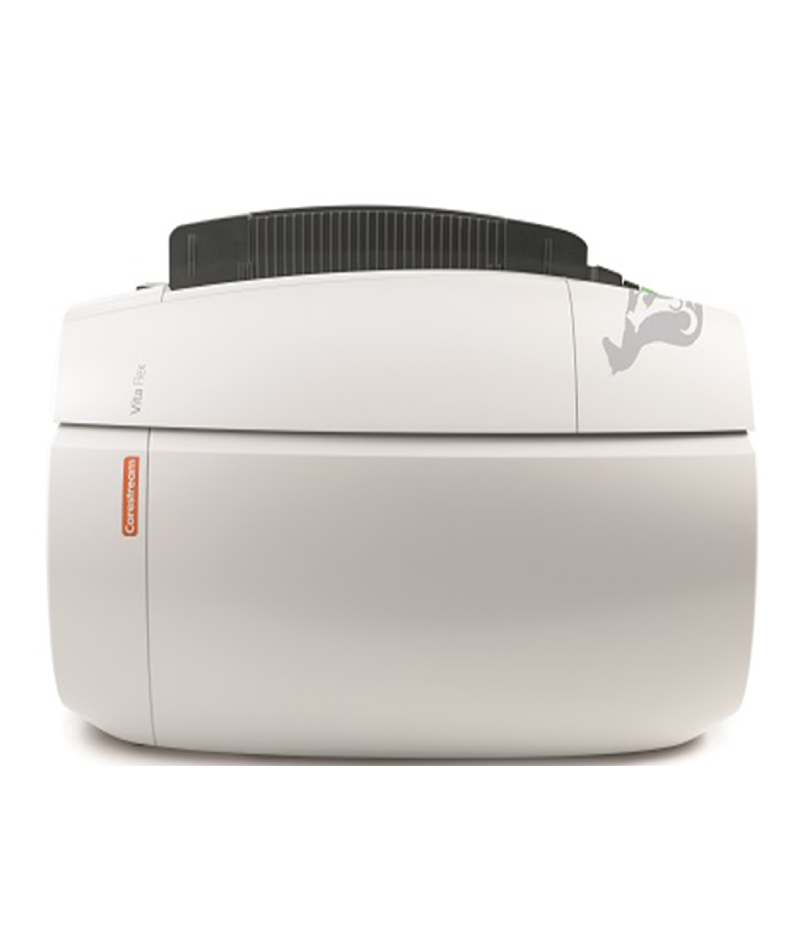

CARESTREAM VITA FLEX



SPECIFICATION           PARAMETER

Brand                    CareStream
Model                    Vita Flex
Weight                   25kg
Dimensions(W x D x H)    68x34x45 cm
Dynamic Range            0 < 40 mR
Electrical Rating        100-240 V AC 50/60 Hz
Maximum Power
Consumption              120 W
Power Consumption in
Standby Mode             42 W
Power Supply Conditions  AC Power 100~240 V AC,
                         50/60 Hz, 1.5 A
Heat Dissipation         While in Operation
                         330 BTU/H (97 W)
Erase Time               7 < 80 s
                         (depending on screen exposure)
Grayscale Resolution     12-bit processed
                         16-bit unprocessed

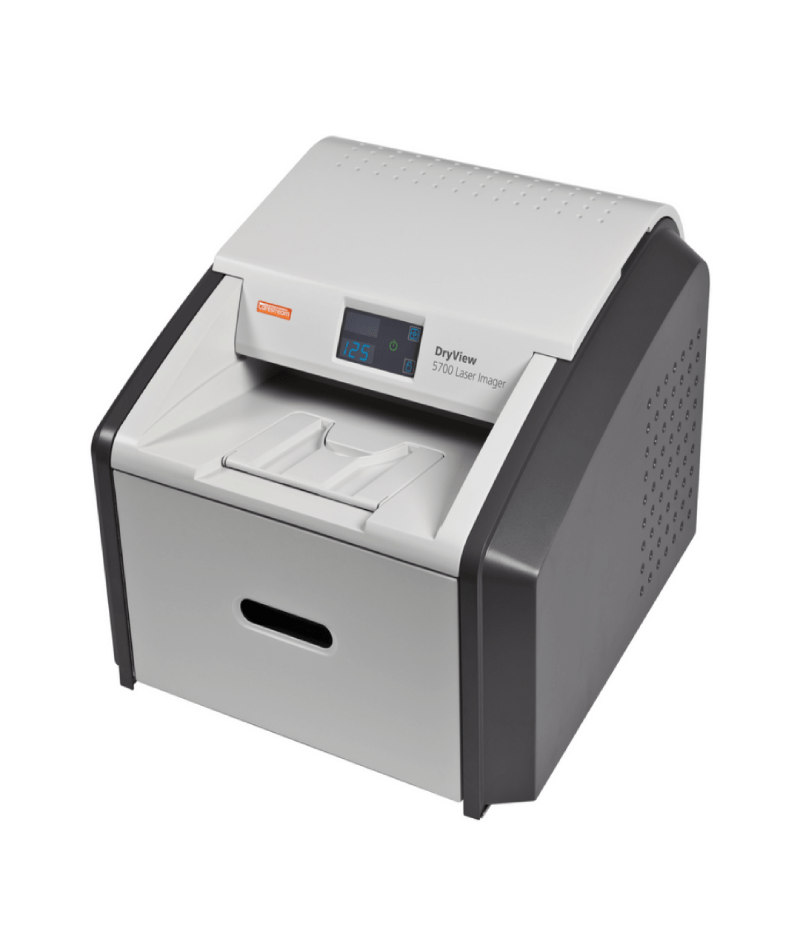

CARESTREAM DRYVIEW 5700



SPECIFICATION         PARAMETER

Brand                 Carestream
Model                 Dryview 5700
Technology            Photothermographic(dry laser)
Laser image quality   325 pixels per inch,
                      78 micron laser spot spacing
                      14-bit pixel depth architecture
Throughput            Capable of greater than 40 films
                      per hour 14 x 17 in.
                      Capable of greater than 70 films
                      per hour 8 x 10 in.
Laser Imaging Film    Blue 7-mil polyester base
                      Daylight-load film cartridges
                      125 sheets/cartridge
film sizes            14 x 17 in
                      11 x 14 in
                      10 x 12 in
                      8 x 10 in
 Weight               54 kg
 Power                100–120 VAC; 50/60 Hz
                      200–240 VAC; 50/60 Hz

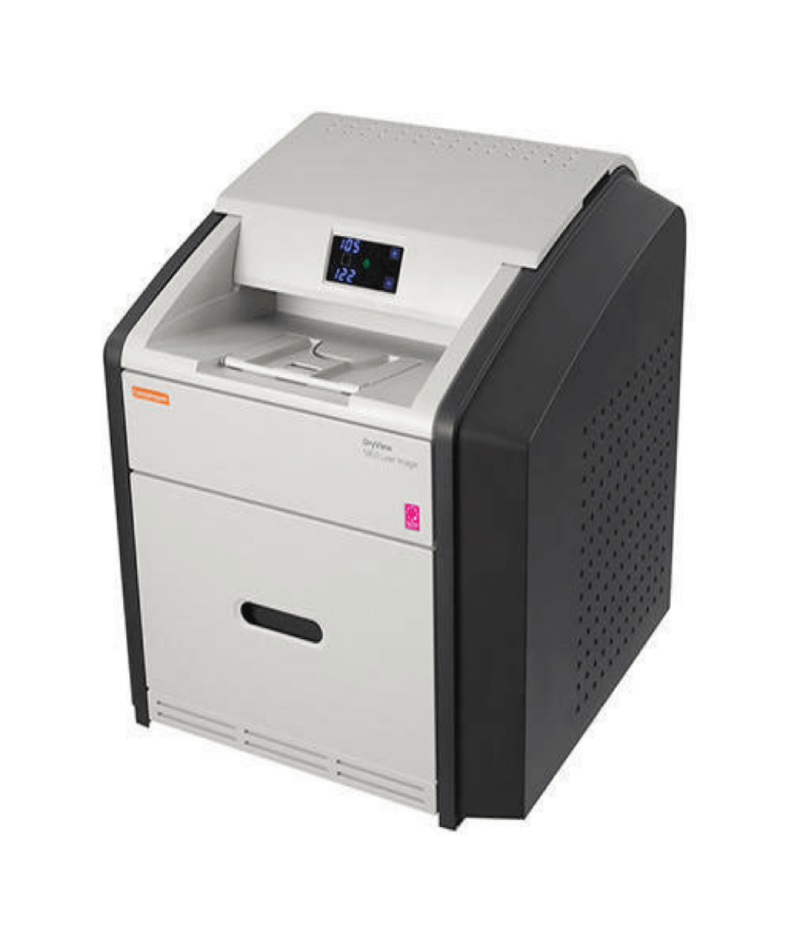

CARESTREAM DRYVIEW 5950



SPECIFICATION         PARAMETER

Brand                 Carestream
Model                 Dryview 5950
Technology            Photothermographic(dry laser)
Laser image quality   508 pixels per inch,
                      50 micron laser spot spacing
                      14-bit pixel depth architecture
Throughput            Capable of greater than 40 films
                      per hour 14 x 17 in.
Laser Imaging Film    Blue 7-mil polyester base
                      Daylight-load film cartridges
                      125 sheets
film sizes            14 x 17 in
                      11 x 14 in
                      10 x 12 in
                      8 x 10 in
 Weight               79 kg
 Power                100–120 VAC; 50/60 Hz
                      200–240 VAC; 50/60 Hz
Experience the difference of using a C-arm designed for the specific needs in Orthopedics. The power to penetrate dense anatomy in lumbar and hip regions in small or large patients. The precision to accentuate boney anatomy for clear spine and ortho images. The performance to get the image you need in less time and with fewer exposures.
Biomed Technology

© 2018 Biomed Technology. All rights reserved | Design by BT Software Solutions

Popular
